Your Reliable Automatic Cartoning Machine Manufacturer in China
Neocarton’s fully automatic cartoning machine uses full-process automation and modular design to achieve stable, high-speed continuous operation, making the production process more efficient and flexible. It can automatically complete the product feeding, carton opening, and loading processes without human intervention. While significantly improving production efficiency, labor costs are effectively reduced.
Our automatic cartoning machine supports fast specification switching and is easy to integrate with existing production lines, thereby simplifying the production switching process and reducing the debugging workload. Contact us now for a stable, efficient, and highly cost-effective packaging solution.
Types of Our Automatic Cartoning Machine
Materials move horizontally, ideal for regular, large-scale products; stable, efficient, high yield.
Top-down feeding, space-saving, suits small bottles, bags, or varied products; layout is compact.
Custom packing fits your products and processes well. It handles special items easily, boosts your flexibility, and output.
Features of Our Automatic Cartoning Machine
High-precision gear transmission and precise, stable action make automated box packing more reliable.
The variable frequency motor operates smoothly and provides stable power for continuous automated cartoning.
Modular design, realize automatic and quick change, adapt to multi-specification production.
Intelligent detection identifies missing products and empty boxes, ensuring accurate and stable cartoning.

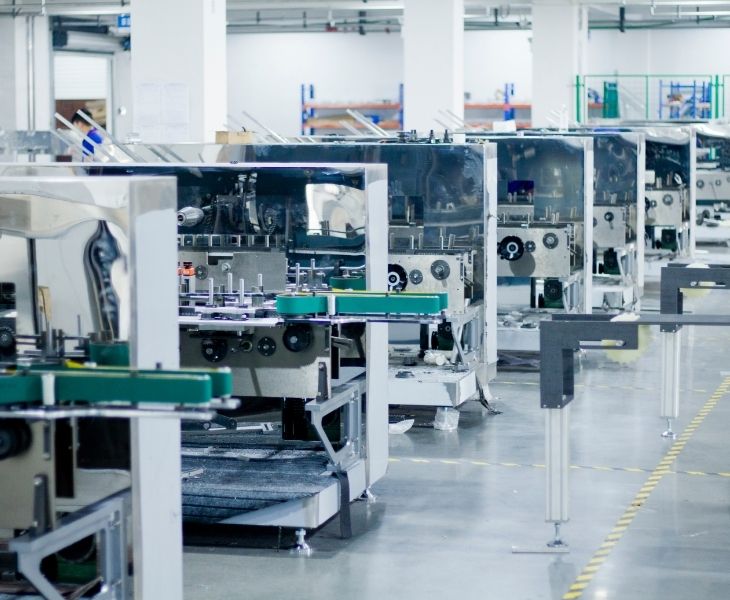

Low Maintenance, Long-Term Money-Saving
Our fully automatic cartoning machine has a simple PLC control system and an automatic lubrication system. It can control refueling time and amount well. Important parts, such as bearings and guide rails, are maintained automatically on time. Besides, fragile parts are made of high-wear-resistant alloy. They are easy to take care of daily. Using it for a long time can save you a lot of maintenance fees and money on parts. It helps reduce long-term maintenance costs.
Multi-Safety Protection, Stable & Reliable
You may worry about the machine’s safety and stability when it works. But don’t worry too much. Our automatic cartoning machine has many protection functions, like an infrared sensing safety door, an emergency shutdown button, and an intelligent monitoring module. It watches the machine’s operation and collects data in real time. If there is a problem, it finds it quickly. Then it gives a sound and light alarm, or even stops automatically. This protects the machine, makes it last longer, and prevents safety accidents.
Precise Positioning, Higher Qualified Rate
Our automatic cartoner’s biggest advantage is its accurate positioning. It can help you improve packaging pass rates and work efficiency. It has a high-precision servo positioning part and uses a PID algorithm to control it better. Even when it packs quickly and runs for a long time, it will not be out of place. Besides, the machine has photoelectric sensors. They can find the position of materials accurately, reduce waste and defective products, and make the whole production line run faster.
Quality Control Ensures a Stable Long Run
Our automatic packing machine follows standard tests from parts purchasing, assembly, and debugging to factory inspection. Core structures and electric control parts pass aging tests and precision calibration. With our mature QC system, the machine maintains steady performance after delivery. It reduces unexpected downtime and maintains consistent accuracy, cuts maintenance costs and downtime, and supports continuous, profitable production.
Applications of Our Automatic Cartoning Machine

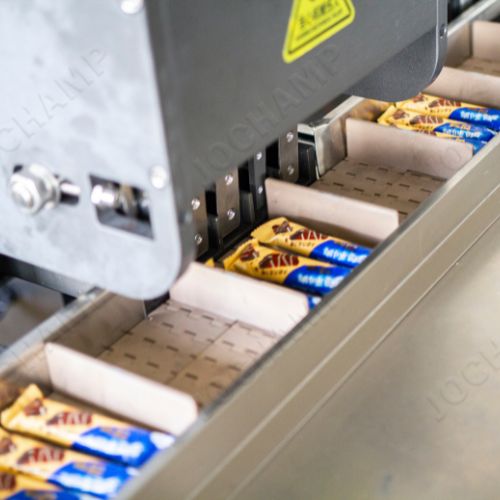

Meet the requirements of food cleaning and standardization, automated continuous operations are more stable and efficient, reduce manual contact, increase production capacity, and reduce overall costs.

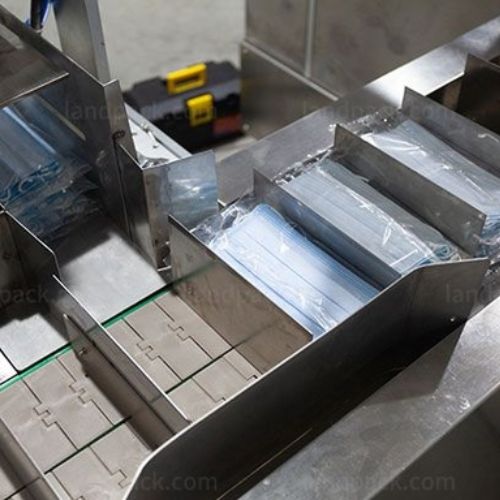

Suitable for the packaging of various products, automated operation is regular and unified, making the finished products more exquisite, reducing manual intervention, and improving production efficiency efficiently and stably.

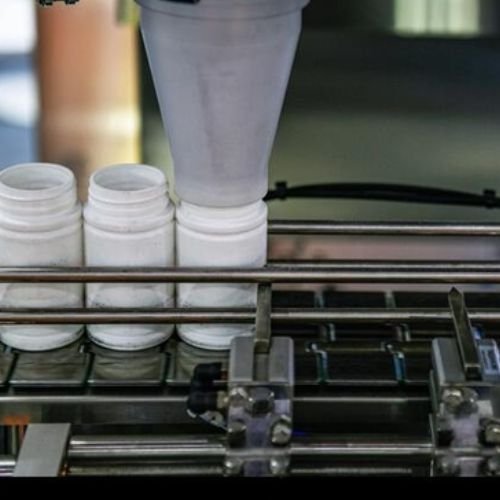

It meets the high compliance and cleanliness requirements of the pharmaceutical industry, automates operations more accurately, reduces human errors, and makes production stable, reliable, and traceable.

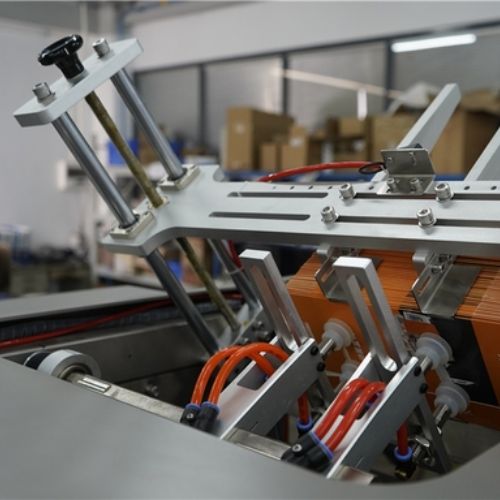

Adapted to multi-specification product packaging, highly versatile in automated operation, convenient for changing types, saves manpower, and easily completes large-batch packaging tasks.
- Specification
| Parameter Category | Specification | Description / Features |
| Machine Type | Horizontal / Vertical / Custom | Horizontal for long or large products, vertical for small/compact products, custom for special sizes or shapes |
| Production Capacity | 100–300 cartons/min | Adjustable based on machine type and product; supports small to large batch production |
| Carton Size | L 50–300 mm, W 30–200 mm, H 20–150 mm（customizable） | Customizable; compatible with common carton types (tuck-in, reverse tuck, glue sealing) |
| Product Size | L 10–250 mm, W 10–150 mm, H 5–100 mm | Suitable for food, pharmaceuticals, cosmetics, hardware, and other small items |
| Automation Level | Fully automatic | Covers carton feeding, opening, loading, folding ears, sealing, and discharge |
| Frame Material | 304 Stainless Steel | Rust-proof, durable, easy to clean; meets food and pharma standards |
| Drive System | Precision alloy gears + servo motor | Stable, wear-resistant, precise positioning, improves packaging accuracy |
| Control System | PLC + touchscreen interface | Speed adjustable, quick changeover, user-friendly operation |
| Feeding & Positioning | Stable conveyor / optional positioning device | Handles regular and irregular products, reduces jams and misalignment |
| Safety Protection | Infrared safety door, emergency stop, intelligent monitoring | Monitors machine status in real-time, prevents accidents, and equipment damage |
| Optional Features | Rejecting defective products, coding, scanning, and vision inspection | Enhances production flexibility and quality control |
| Power | 3–7 kW (depending on machine type) | Energy-efficient, suitable for continuous production |
| Voltage | 380V / 220V (customizable) | Standard industrial power supply |
| Weight | 800–2500 kg (depending on machine type) | Stable structure, suitable for fixed installation on the production line |
| Footprint | 1.5–6 m² | Flexible based on machine type and production line layout |
| ROI / Cost Saving | Replaces 4–8 workers, saves 50–80% labor cost | Typical payback 6–18 months; faster ROI for high-volume, high-labor-cost production |
Common faults include:Â the carton cannot be formed, the product gets stuck, the box seal is not good, and the sensor alarms. This is usually because the machine is not cleaned, the product/carton does not match the machine, or the parameters are not adjusted properly.Â
To avoid these problems, you need to keep the machine clean, adjust parameters as required, and inspect parts. If there is a fault, first verify product and carton compatibility with machine specifications. If you can’t solve it, contact our technical support team for technical support.
Daily maintenance is simple. You just need to keep the machine surface and feeding channel clean, regularly add lubricating oil to the moving parts, and check the electrical circuit, sensors, and servo system. It is recommended that you have a maintenance plan: check the key areas before turning on the power every day, clean and lubricate every week, and perform comprehensive calibration and inspections every month. This can extend the machine’s life and ensure stable production.
There is no fixed value for the payback time. It mainly depends on your production capacity, labor cost, production efficiency, and product batch. Generally speaking, as long as you have large production and high labor costs, you can earn back the equipment money you invested in about 6 to 18 months. You can calculate your production and labor costs in advance and accurately calculate how long it will take to recover your investment and how much money you can save.
Many factors affect the machine’s speed. To put it simply: if your products have different shapes, sizes, and materials, the cartoning speed will be different; if the carton is too complicated and hard, the machine will also be slower. The machine’s own configuration, control system, and the speed of feeding and sealing boxes also have an impact. In addition, different operating habits and production settings will also lead to different speeds.
When you wish to create a custom cartoner, you only need to provide us with: the size of your product, the appearance of your product, the weight of your product, how you would like your product packaged, the size of the carton, an estimate for your production quantity, and how you want to arrange your production line. If you have additional specifications (for example, dust protection, code scanning, detection), we will also create a reasonable and functional solution to suit those requirements without the need for any adjustments afterwards.
How Does an Automatic Cartoning Machine Work?
Automatic Box Retrieval and Opening
The device will automatically grab the folded carton, open the flattened carton, stretch it into a regular box shape, and then deliver it to the designated packaging location in an orderly manner. The entire process does not require manual opening of the box. The movements are stable, and the positions are accurate, laying a solid foundation for subsequent box loading and allowing the entire process to start smoothly.
Automatic Conveying of Products
The conveying device at the front end of the machine will arrange the products to be packaged neatly and convey them forward in an orderly manner, so that each product is in the optimal box entry position. The product is transported smoothly and without clutter, without skew or accumulation, ensuring that the product is just aligned with the box when making the next step.
Automatic Box Push
Once the product is in position, the pusher part of the machine gently pushes the product into the carton with just enough force not to scratch the product or the outer packaging. Each product can enter the box steadily and completely without jamming or going off the track.
Automatic Folding Ears and Sealing Box
After the product is put into the box, the machine will automatically fold the small ear pieces on both sides of the carton, and then put the box cover on to complete the sealing and fixing.
This way, the seal box is both tight and beautiful, will not be loose, and does not need to be manually inspected or trimmed.
Automatic Discharge Conveying
The finished box after packaging will be automatically sent out of the equipment. This step can be directly connected to the next production line to achieve continuous production.
The entire process is automated and connected, so you don’t need to manually pick up materials and handle them, which saves effort and improves overall production efficiency, making the operation more worry-free.
How to Choose the Right Automatic Cartoning Machine?
| Key Factor | What You Should Consider | What You Get |
| Product Compatibility | Choose a machine based on your product’s shape, size, and weight (food, cosmetics, pharmaceuticals, hardware, etc.) | Smooth operation without scratches, jams, or unexpected downtime |
| Machine Type | Go for horizontal machines for long or larger items; vertical machines for small or compact products | Easier loading, better space usage, and higher overall efficiency |
| Speed Matching | Match the machine speed with your actual production volume | No bottlenecks, no overinvestment—just the right balance of cost and efficiency |
| Carton Compatibility | Ensure the machine fits your carton size and structure (tuck-in, reverse tuck, glue sealing, etc.) | Clean, secure packaging without deformation or sealing issues |
| Automation Level | Choose a fully automatic system covering erecting, loading, and sealing | Less manual work, fewer errors, and more consistent output |
| Manufacturer & Support | Work with a supplier that offers customization and reliable after-sales support | Peace of mind with fast setup, training, and ongoing support |
| Feeding & Positioning | For irregular or unstable products, prioritize stable feeding and positioning systems | Fewer jams, better alignment, and easier operation |
| Line Integration | Make sure the machine integrates smoothly with your existing production line | Continuous workflow with no interruptions or manual handling |
