Neocarton-Your Reliable Top Load Case Packer Manufacturer in China
Neocarton top load case packers control top-loading motion with the help of gravity, precisely and smoothly placing products inside the cartons. Servo drive and flexible grasping prevent soft bags from deforming and bottles from breaking, ensuring the product quality rate. Compared to the side load case packer, the compact vertical structure saves horizontal floor area for your workshop, maximizing floor space utilization. Â
The machine handles different products and cases, used in the food, pharmaceuticals, electronics, and cosmetics industries. As a professional top load case packer, our machines are ISO and CE certified, ensuring product quality and safety. We customize top load case packer solutions according to your production needs.
Our Products

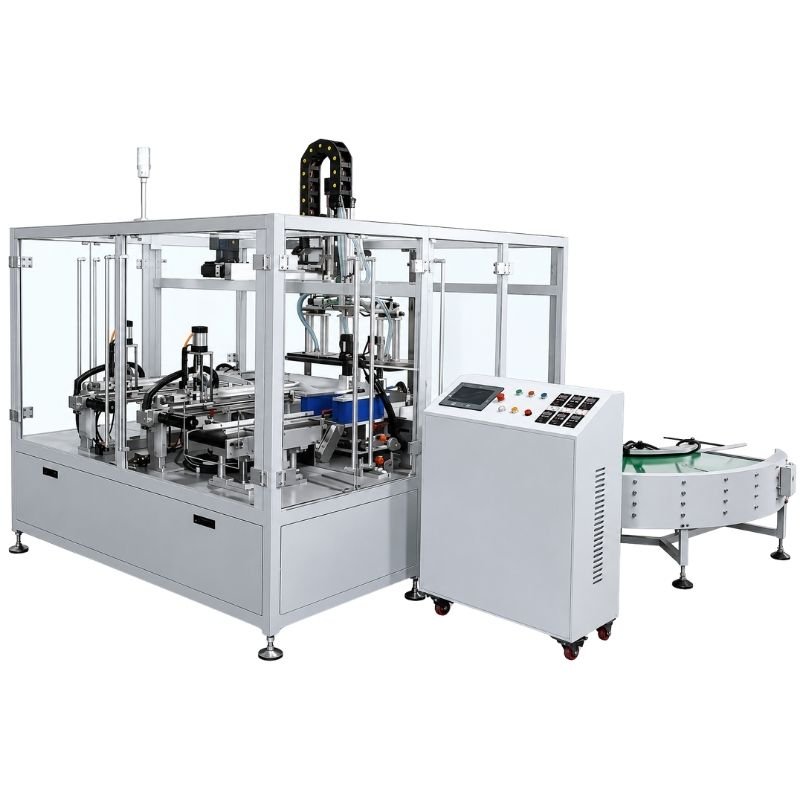

It pauses when packing to complete complex actions for irregular and complex assembly packing, making it an ideal choice for enterprises pursuing high quality and refined production.

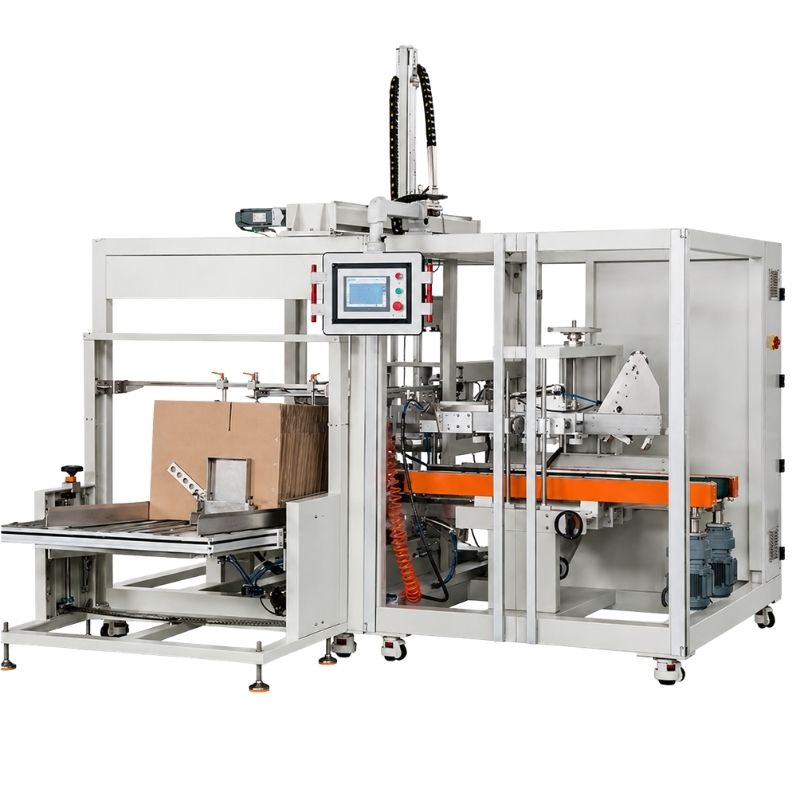

Products and cartons are completely packaged synchronously without pause at high speed, increasing the overall OEE of the entire line and helping you cope with large-scale production.

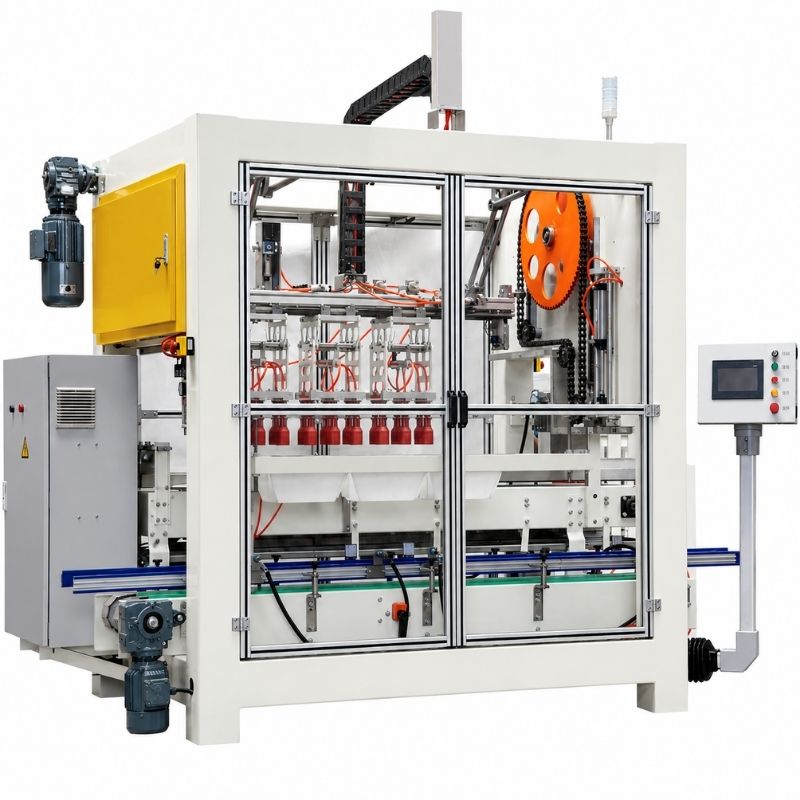

The products are single-filely transported to the packing area, suitable for flexible production lines with medium-low speed and small and multiple batches.

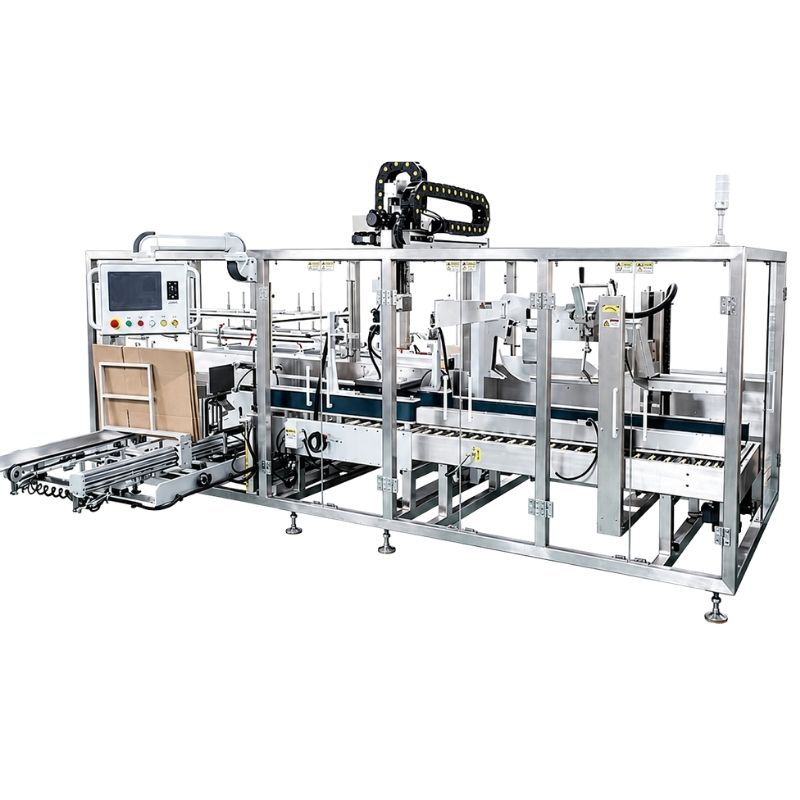

Multiple rows of products are sorted and packed simultaneously, which reduces the front-end sorting time and increases throughout capacity, helping you build an automated, large-scale production line.
Features of Top Load Case Packer​
Products are vertically placed into the carton by gravity. It avoids collisions or scratches caused by various soft or hard packaging, significantly improving the qualification rate of products.
The compact vertical structure designed by our engineering team shortens the machine’s longitudinal length, which optimizes factory layouts and saves floor space for you.
It makes sure the carton remains square throughout packaging without the need for wing flaps, which reduces jamming rate and achieves high-quality and consistent product appearance.
As an experienced top load case packer manufacturer in China, we use industrial-grade stainless steel frames to ensure long-term durability and stable 24/7 packaging performance.Â

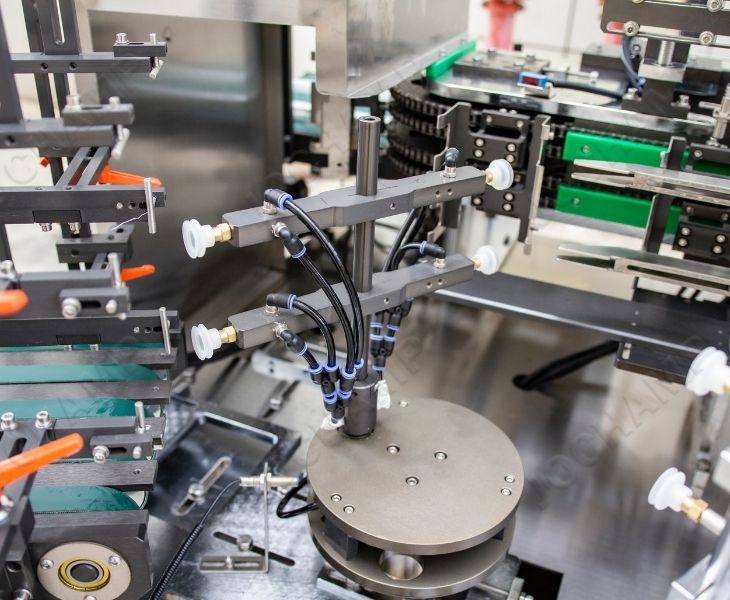

High Adaptability for Packaging Materials
The top load machine forms cartons from top to bottom and precisely controls the suction cup, allowing it to handle different carton types, including corrugated cartons, recycled cartons, or turnover pallets.Â
You don’t need to limit carton types when purchasing and can freely choose economical packaging materials. As a flexible top load case packer manufacturer in China, we help global factories reduce long-term packaging material costs while maintaining stable packing quality.Â

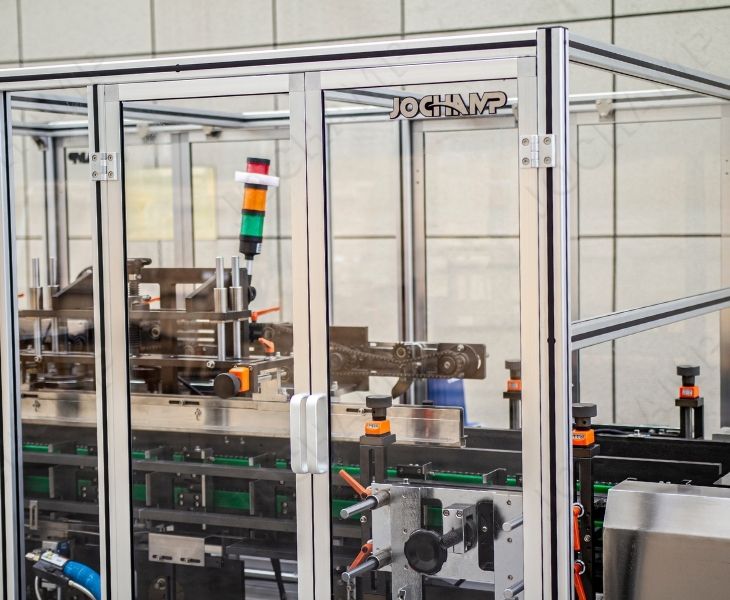

Extremely Low Energy Consumption
The vertical servo trajectory is more efficient and smoother than traditional complex horizontal push-pull and lifting mechanisms. This structure reduces vulnerable parts and friction areas, thereby lowering the overall energy consumption.Â
The operation method greatly reduces the daily maintenance. Our top load case packers help manufacturers lower energy consumption, reduce maintenance frequency, and improve long-term ROI.Â
Applications of Top Load Case Packer​

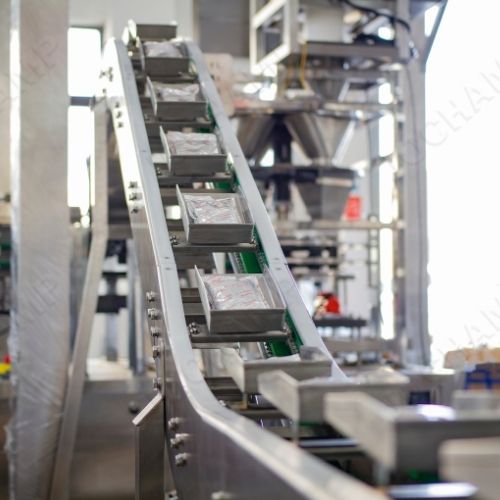

The top load case packer has a gentle packing action and protects soft bags and bottled foods, maintaining product quality. The fast-switching system is highly compatible with packaging in the fast-moving consumer goods industry, reducing the product damage rate.

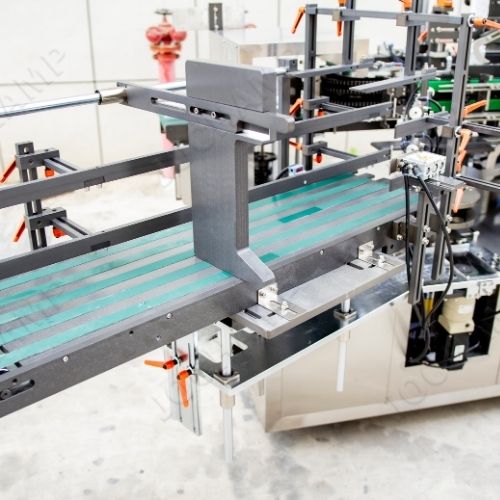

Due to the re-washable structure, the cleaning and maintenance of our China-manufactured top load case packers comply with industry hygiene standards. It can be equipped with printing and labeling, and additional components to meet drug traceability regulations and serialization.Â

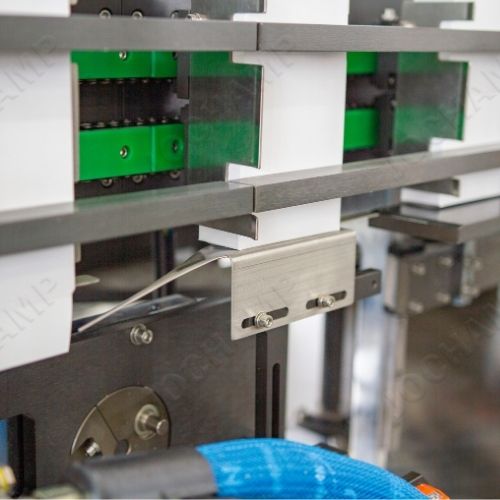

The vertical grasping avoids hard squeezing, ensuring no scratches on the outer packaging of products, and internal precision components are not damaged by vibration. The vertical structure reduces static electricity generated by belt friction, protecting sensitive electronic components.

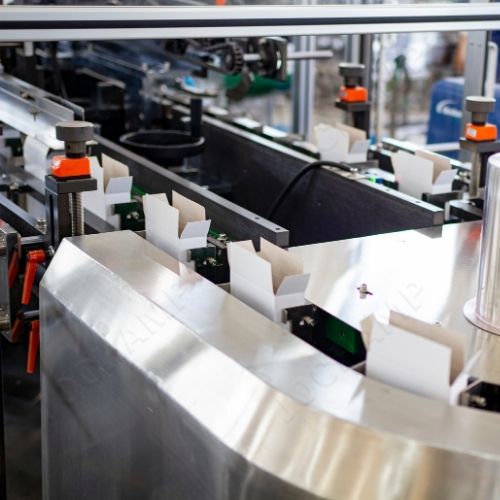

The top load structure quickly meets the mixed-shipment demands of various products in small quantities, which is beneficial for the product packaging and sorting at the distribution center, and increases the space management efficiency of large-scale distribution centers.
Specifications
| Packing Speed | 15 – 40 cases/minute |
| Infeed Lanes | Single-column or multi-column feed (1 – 6 columns available) |
| Case Types | RSC standard boxes, trays, display boxes (WRE) |
| Max Case Size | 500 × 400 × 400 mm (L×W×H) |
| Min Case Size | 200 × 150 × 120 mm (L×W×H) |
| Changeover Time | < 15 minutes |
| Pick & Place | Servo dual-axis / quad-axis manipulator + opposed vacuum suction cups |
| Frame Material | SUS304 stainless steel / Partial SUS316L is available as an option |
| Control System | PLC + HMI |
| Safety Guarding | Sliding fully enclosed protective door + safety beam / electronic lock.Â
CE certified. |
| Power Supply | 380V / 50Hz / 3Phase |
Remote Fault Diagnosis: it supports IIoT data interconnection, and experts can troubleshoot immediately to reduce unplanned downtime losses.
Anti-corrosion components: they can resist chemical cleaning, which improves machine hygiene standards, suitable for food and pharmaceutical workshops.
Energy-saving components: it optimizes gas path and power recovery, reducing air and power consumption and cutting operating costs.
Yes. We consider flexibility when designing the machine. Our top load case packers are equipped with quick adjustment without tools. If you launch new products in the future, you don’t need to purchase a new machine. Just adding a software recipe in the HMI touchscreen, you can easily handle new specifications.
We offer a one-year warranty and lifetime free technical support to our global clients. Through a 24/7 rapid response mechanism, we ensure your packaging line remains efficient all the time, and you don’t need to worry about equipment malfunctions or long-term operation concerns.
It is very convenient. Due to the toolless changeover design, operators only need to switch the formula through the HMI touch screen and adjust according to the scale indication. The entire changeover can be completed within 15 minutes, which significantly reduces downtime and is suitable for flexible production requirements with multiple varieties and small batches.
The durability and stability are excellent. The main frame uses industrial-grade 304 stainless steel with high structural rigidity. The servo control system comes from an international leading brand, ensuring the carton remains stable without deformation at high speed. The modular design is very convenient for daily maintenance.
Top load case packers can seamlessly connect with upstream sorting, filling, or strapping machines. The top load case packer has strong line compatibility and supports single-column or multi-column feeding to increase production capacity.Â
What Is A Top Load Case Packer?Â
Based on top-down vertical box dropping logic, the top load case packer uses high-precision multi-axis picking and placing components, equipped with vacuum suction cups or mechanical claws as picking heads, to precisely package the products into cartons. It improves the rigid squeezing of the traditional side load case packer, achieving zero damage packaging and increasing the overall line’s yield rate.
Top Load Case Packer​ vs Side Load Case Packer
| Top Load Case Packer | Side Load Case Packer | |
| Feed Method | Servo manipulator with gravity assistance | The horizontal push rod |
| Product Protection | Soft and precise actions  | Hard mechanical compression |
| Space Arrangement | Integrate sorting, stacking, arranging, and boxing within a vertical space | Complex conveying and sorting systems
Large floor area |
| Space Efficiency Revenue | Save up to 30% or more of the horizontal workshop floor space compared to side-load machines | Extensive horizontal coverage area |
| Packaging Tolerance | High adaptivity to packaging material | Have high requirements for rigidity, crease precision, and carton opening size |
| Packaging Material Procurement Cost | Few restrictionsÂ
Low procurement cost |
High-quality cartonsÂ
High procurement cost |
| Changeover Efficiency | High efficiency
Switch through software and EOAT |
Low efficiencyÂ
Need to replace many expensive molds |
| Structure Complexity | Simple structure
streamlined vertical servo trajectory |
complex structure
a large number of cylinders, intricate connecting rods, and push-pull mechanisms |
| Long-term Maintenance Costs | Low | High |
| Product Types | Products that are difficult to place and package horizontally, including cans, small bags, and glass bottles | Specialized in rigid boxes, not suitable for soft bags and fragile irregular-shaped items |
How to Choose A Top Load Case Packer?​Â
Product Physical PropertiesÂ
Comprehensively assessing product physical characteristics is important for machine selection. Different forms and materials of products have different requirements for grasping. For example, fragile items are easy to scratch, such as premium cosmetics and small medicine bottles. We recommend choosing a top load case packer equipped with servo flexible grippers and vacuum suction cups, which completely eliminate surface damage.
Production CapacityÂ
The speed of the top load case packer should match the speed of the front production line. Suitable production capacity planning ensures the post packaging line perfectly complies with future new products, thereby maximizing the overall efficiency of the equipment throughout its entire lifecycle.
For refined production with multiple varieties and small batches, we recommend intermittent top load case packers with high flexibility and medium and low speeds.Â
For large-scale production with a single category, continuous top load case packers can meet the high production capacity of high-speed production lines.Â
Workshop LayoutÂ
The selection is based on your physical space of the factory workshop, height restrictions, and the overall logistics flow. Compact Top Load case packer saves up to 30% of the lateral space for the renovation of crowded old factories or new workshops with limited space, reserving space for the subsequent installation of inspection, labeling, or palletizing equipment for you.
Machine ComplianceÂ
Machine compliance ensures the safe launch of your product. The equipment should meet FDA/GMP/CE standards to help enterprises easily pass industry audits and regulatory inspections, thereby reducing long-term operation risks.
Customization Options of Top Load Case PackerÂ
Flexible Case Forming System
We customize the carton forming system according to your carton type, supporting the switching of RSC, wraparound, or harness-style blanks. One top load case packer can simultaneously meet the multiple packaging requirements of e-commerce and bulk logistics, and you don’t need additional investments for production line expansion.
Sealing MethodÂ
Hot melt adhesive: it is specifically for high-speed, automatic continuous production, suitable for large-scale delivery. The adhesive cures quickly and is highly durable after bonding. It not only provides a high-quality appearance but also remains intact during stacking and storage.
Adhesive tape: Customized for multi-variety and small-batch flexible packaging production lines. It has a simple system and achieves fast production switching.
Top Loading ConfigurationÂ
Robot-style: Industrial multi-axis or Delta robots sort flexibly and arrange multi-variety products, which are suitable for handling high complexity packaging.
Gantry: it can grasp in a large span and withstand high-intensity loads, used for large-sized and heavy products.Â
Escapement: based on mechanical blocking and pneumatic box-dropping principles, it is specifically for rigid products. It has a simple structure, fast operation, and low initial investment, making it the first choice for cost-effective, high-throughput production lines.
Product Lowerator Â
The product lowerator is specially for high-value and fragile products. It protects products during vertical movement, avoiding physical impacts and surface scratches caused by free fall, which improves the production qualification rate.
Moving Nose Lane DividerÂ
The flexible nose cone conveyor belt with servo drive has no impact during lateral deflection and smoothly distributes high-speed products from upstream single column to pre-arranged channels at the rear end, without any problems such as material impact, overturning, or packaging deformation.
Robot PickerÂ
EOAT and adaptive pneumatic control grab soft bags gently without deformation. In the food and cosmetics industries, there is no need for manual bag placement, reducing long-term labor costs. It creates an automatic, large-scale production system that operates continuously 24 hours a day.
Multiple Loading StationsÂ
The single loading station has a low speed and can not meet large-scale production needs. With the multiple loading station design, multiple grasping hands can simultaneously perform parallel and coordinated operations on multiple cartons, providing you with high workshop productivity and high return on capital without increasing occupied area.
